Flows & Handlers

“Flows” are a set of statements like pseudocode, written using simplified language, for implementing integrations.

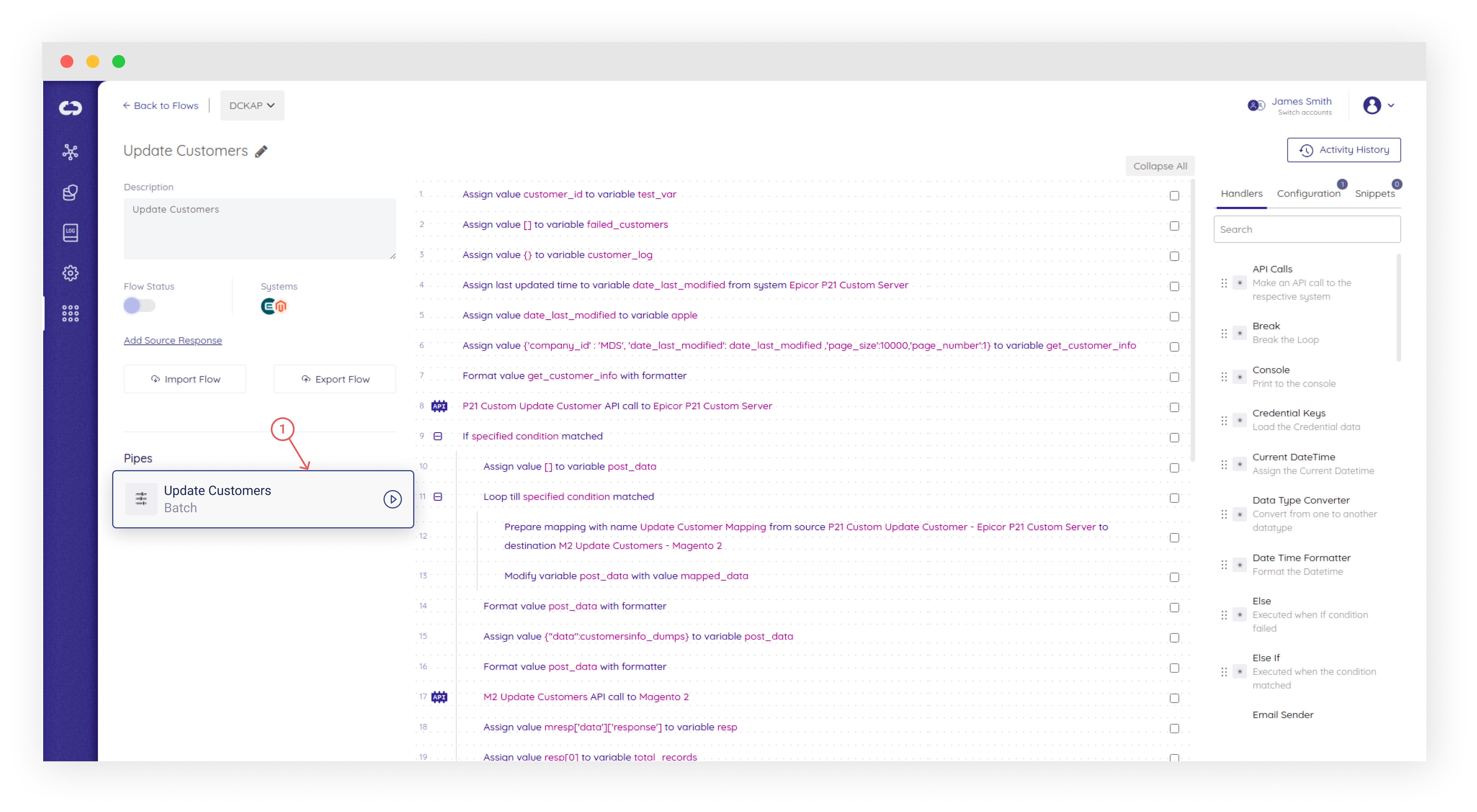

Introduction to Flows

Flows act as a neural schema for system integration, carrying out the whole integration process end to end. The flow is responsible for handling business logic, making API calls to the targeted system, formatting and validating data, logging transactions and so on.

Flows are created by developing a logical program sequence using lines of code-representation known as Handlers. Handlers form the backbone of every Flow.

What are Handlers?

Handlers are statements used to build a flow, in the form of code-representation by following an algorithmic approach. Every handler has its functional logic and requires a certain set of parameters to be defined to carry out its activities. Multiple Handlers are available to the user to build their flow.

Some example functionalities that Handlers can perform include

• :arrow_upper_right: Making API calls to any system
• :aries: Assigning data to variables
• :twisted_rightwards_arrows: Mapping of the API fields
• :notepad_spiral: Display log messages
• :fast_forward: Sending data to the destination system in the required format
• :envelope_with_arrow: Sending emails and so on

The same handler can be used N number of times in a Flow.

How to use Handlers?

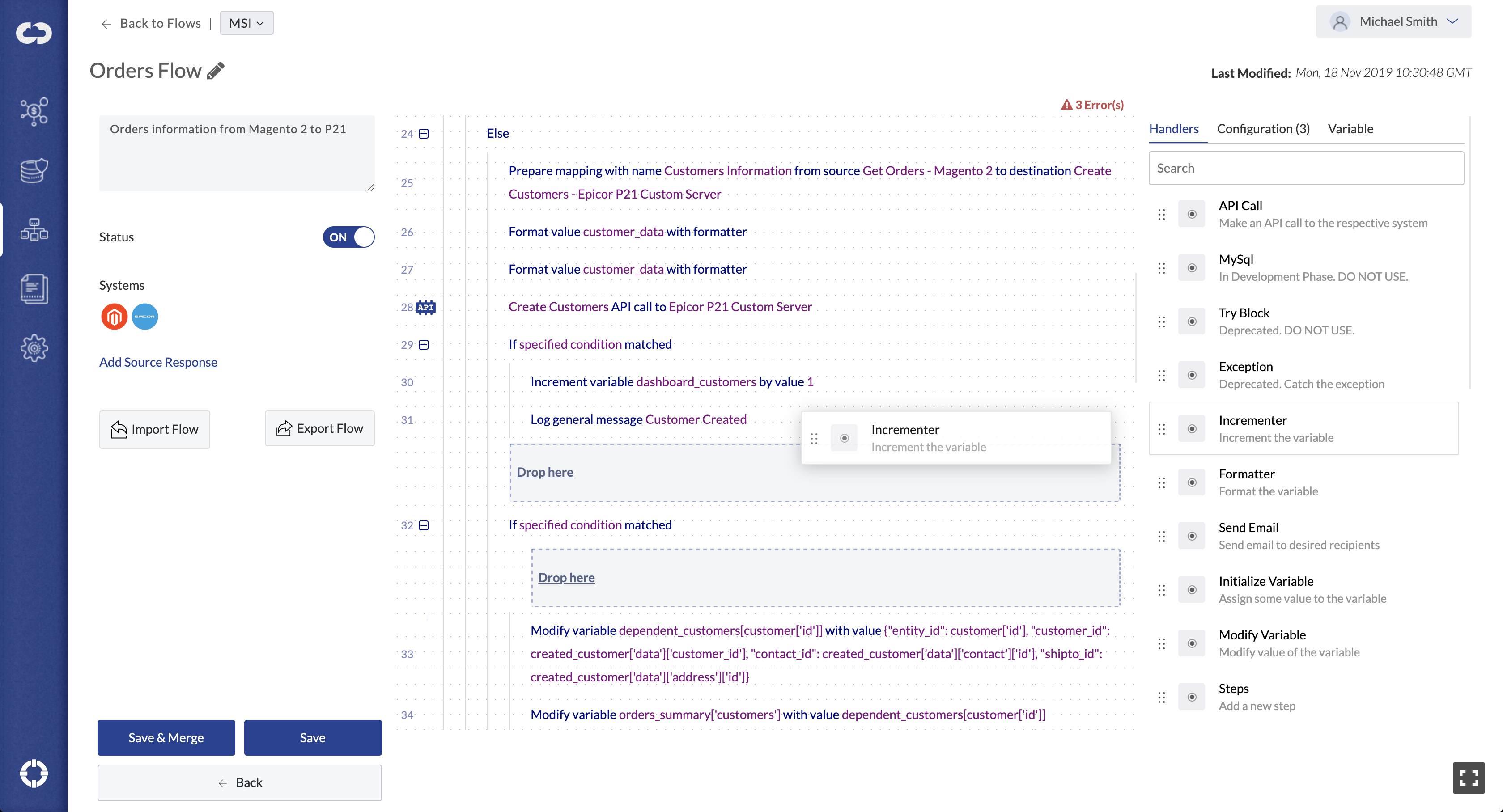

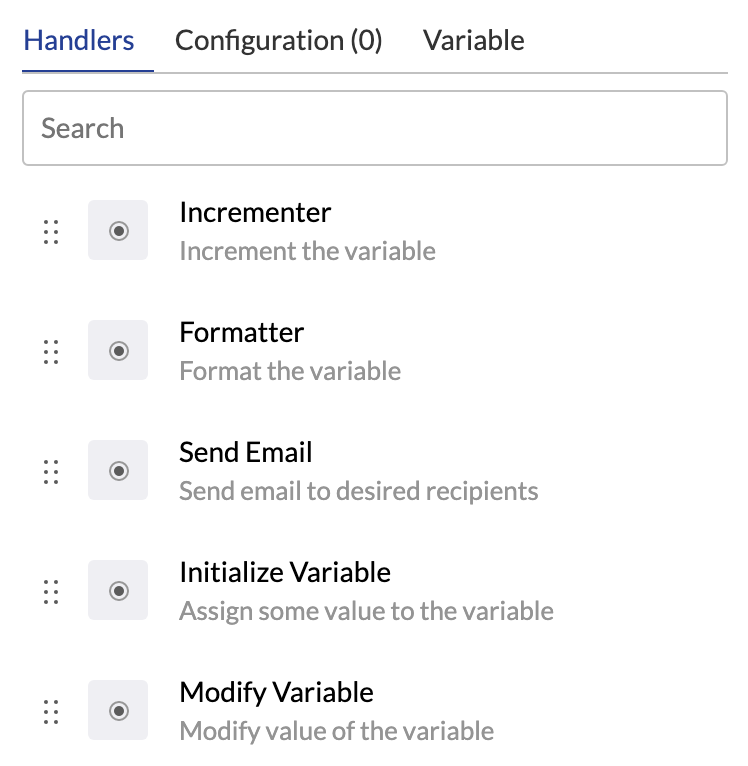

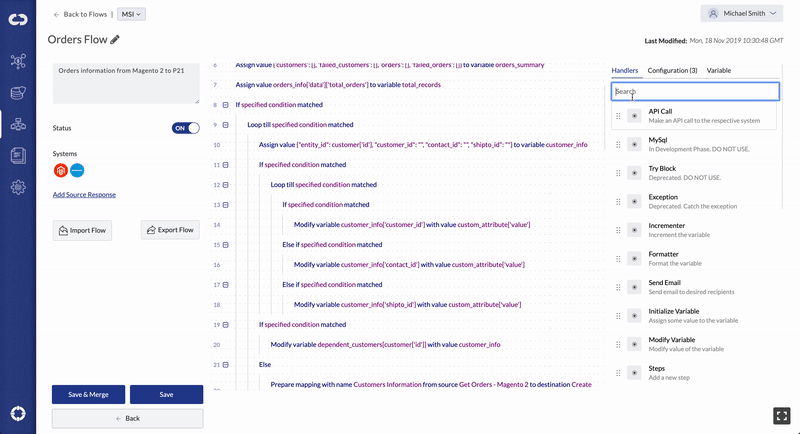

Simply drag and drop Handlers to the ‘Play Area’ to include them in your Flow. Once it is positioned in the coding area, its parameters need to be assigned. These parameters are different for each handler and are discussed in detail below.

Handlers can also be copied, moved, and commented on within the Play Area and can also be deleted when they are no longer needed.

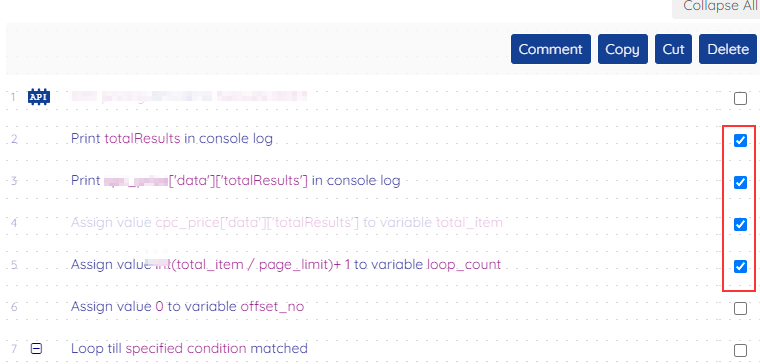

Selecting Multiple Handlers

Multiple Handlers can be selected by selecting the checkbox alongside each handler statement. Once the handlers are selected, user may Cut/Copy/Delete/Comment the statements as needed.

Available Handlers

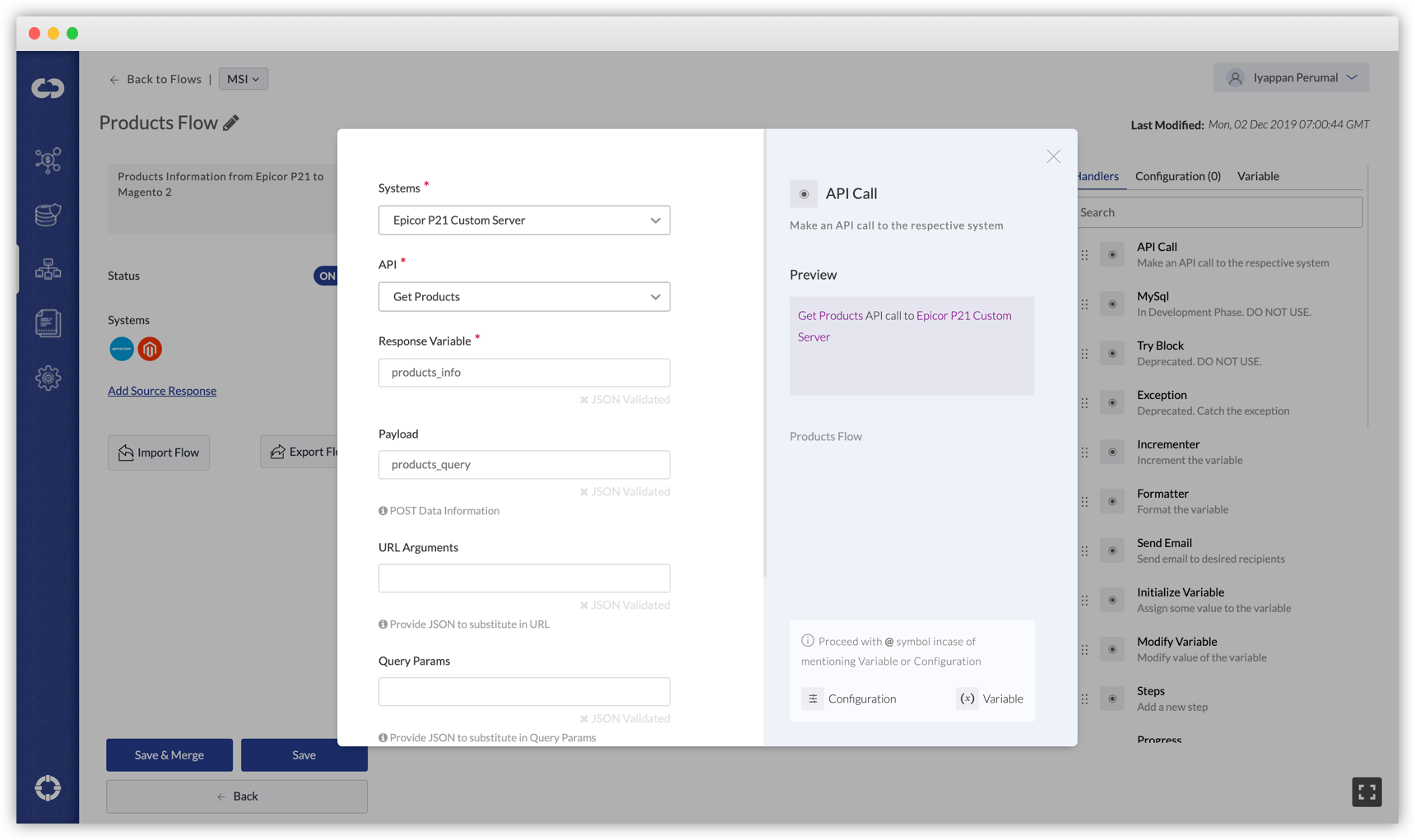

API Calls

Triggers an API Call in which you can pass parameters and payload to any system. The API responses will be stored in a defined variable which is available for further usage in the Flow.

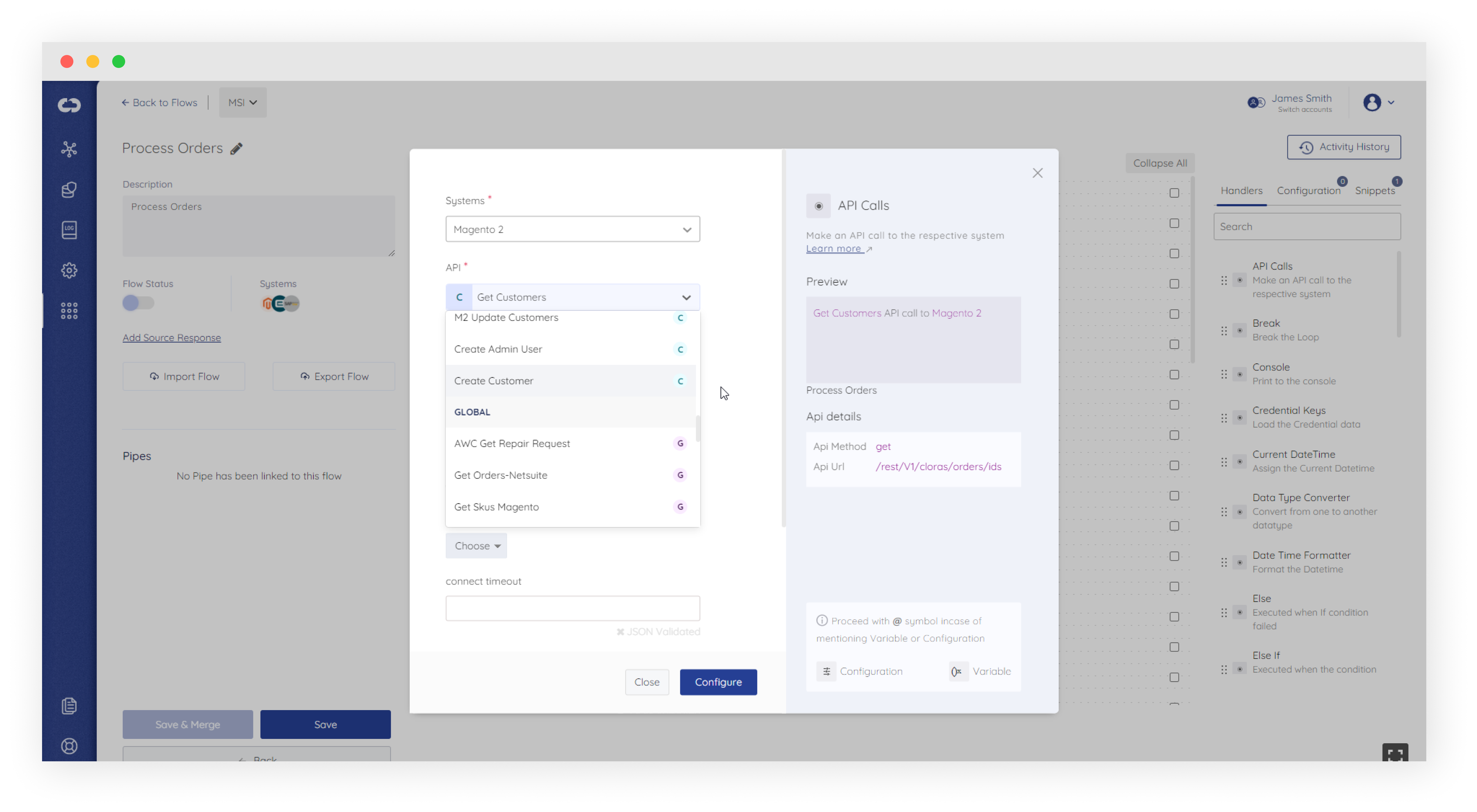

While clicking on the API dropdown list, a differentiator to identify public and private APIs will be seen. See image below:

Parameters	Definition	Type
Parameters	Definition	Type
Systems	Platform to send and receive responses	DropDown
API	API endpoints of the selected system. Depending on the Platform chosen, the list of API’s in the dropdown changes.	DropDown
Response Variable	Stores API response Example: customer_info, create_customer_data, etc	Variable
Payload	Request Body. Information sent along with the API call	Variable (defined), JSON, Array
Files	Upload one or many files contents. Example: [ ('file', ('foo.csv', "hello,there,csv,data")), ('file', ('bar.txt', "this is a file content")) ]	Variable (defined), JSON, Array
Headers	Request Headers Example: {"Accept": "application/json"}	Variable (defined), JSON
URL Arguments	Arguments used in a dynamic URL. API URL: /api/customer/{customer_id}/fetch URL Argument: {"customer_id":"2"} Formatted URL: /api/customer/2/fetch In this case, customer_id is replaced with the number 2.	Variable (defined), JSON
Parameters	Request parameters API URL: api/customer/get/?format={format} Query Params: {"format":"json"} Formatted URL: api/customer/get/?format=json Here, format = json will be the query parameters.	Variable (defined), JSON
Override time	To override the timeout at Flow level. Read more below.

For XML Payload (Examples)

Plain request

{'plain_request': {'key1':'value1','key2':'value2'}}

Not a plain request

{'body':{'key1':'value1','key2':'value2'}}

• DCKAP Integrator accepts API responses in JSON, CSV and Text formats.
• API Call Handler also has the facility to add headers from Flows.

To add additional envelope namespace

Along with the above request, add another key “envelope_namespace” to add additional namespace with default namespace

XML Request Body

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:urn="urn:enterprise.soap.sforce.com">
   <soapenv:Header>
   </soapenv:Header>
   <soapenv:Body>
      <urn:login>
         <urn:username>user1@ddckap.com</urn:username>
         <urn:password>user1@123</urn:password>
      </urn:login>
   </soapenv:Body>
</soapenv:Envelope>

Converted JSON request Body

{
    "envelope_namespace": "xmlns:urn='urn:enterprise.soap.sforce.com'",
    "body": {
        "urn:login": {
            "urn:username": "user1@ddckap.com",
            "urn:password": "user1@123"
        }
    }
}

MySQL

Connects to the SQL database and allows users to configure data in the SQL database.

Parameters	Definition	Type
Variable	Stores the response data (SQL response)	Variable
Systems	System to connect to	DropDown
Database Name	Database name to connect to
Action	Operation to be performed on the data. See below for examples.	DropDown
Data	Data to be configured in the database	String/Non-string
Table Name	Table name in the database	String/Non-string
Condition	Condition to validate to configure the data	String/Non-string
Limit	Number of records needed	String/Non-string

Different Action Types with examples:

Action: Insert
Description: Used to insert a record into a table
Example:
INSERT into table_name (name, email, contact_no) values ('John Smith', 'johnsmith@gmail.com', '+17427772299');

Action: Insert Many
Description: Used to insert multiple records into a table
Example:
INSERT into table_name (name, email, contact_no) values ('John Smith', 'johnsmith@gmail.com', '+17427772299'), ('Max Roger', 'roger@gmail.com', '+17217772299'), ('Mike Hussey', 'hussey@gmail.com', '+17347772299');

Action: Replace
Description: Used to insert records into a table if there is no record found already, otherwise records will get updated
Example:
INSERT into table_name (name, email, contact_no) values ('John Smith', 'johnsmith@gmail.com', '+17427772299'), ('Mike Hussey', 'hussey@gmail.com', '+17347772299') ON DUPLICATE KEY UPDATE name=VALUES(name), email=VALUES(email), contact_no=VALUES(contact_no);

Action: Update
Description: Used to update a record from the table
Example: UPDATE table_name SET name='Steve Smith', contact_no='+17433773377' WHERE email='steve@gmail.com';

Action: Delete
Description: Used to delete a record from the table
Example:
DELETE from table_name WHERE email='hussey@gmail.com';

Action: Select
Description: Used to retrieve a record from the table
Example: SELECT * FROM table_name WHERE email='johnsmith@gmail.com' limit 10;

To retrieve column names from the table below example query should be executed,
Query: SELECT * FROM table_name WHERE 1=0;

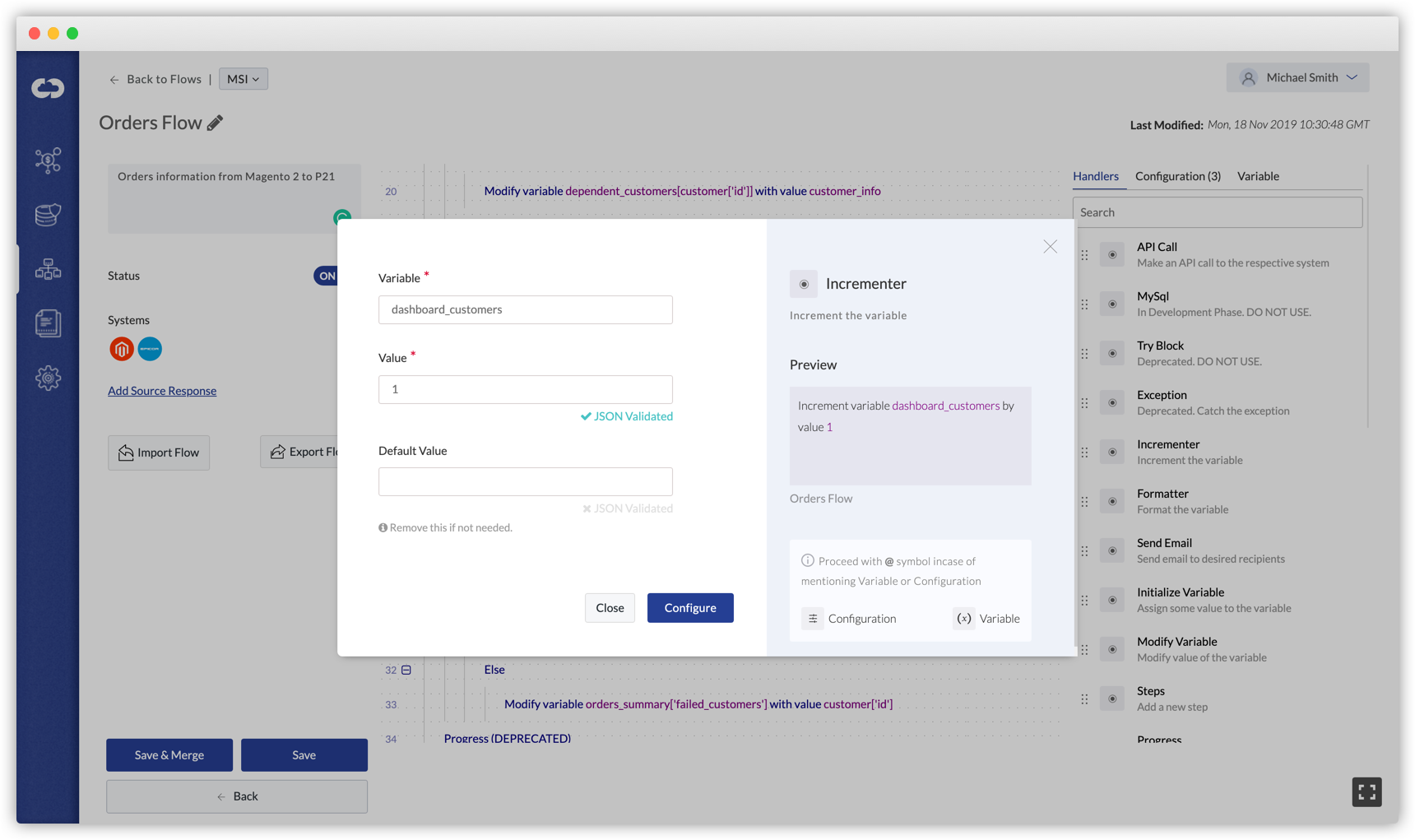

Incrementer

Increments the value of a specified variable by a given step.

Parameters	Definition	Type
Variable	Variable to be incremented. Example: line_number, total_records	Variable (defined)
Value	Value by which the respective variable is increased	Numeric, Variable (defined)

Example

Increment variable line_number by 1

Here, the variable line_number will be incremented by value 1

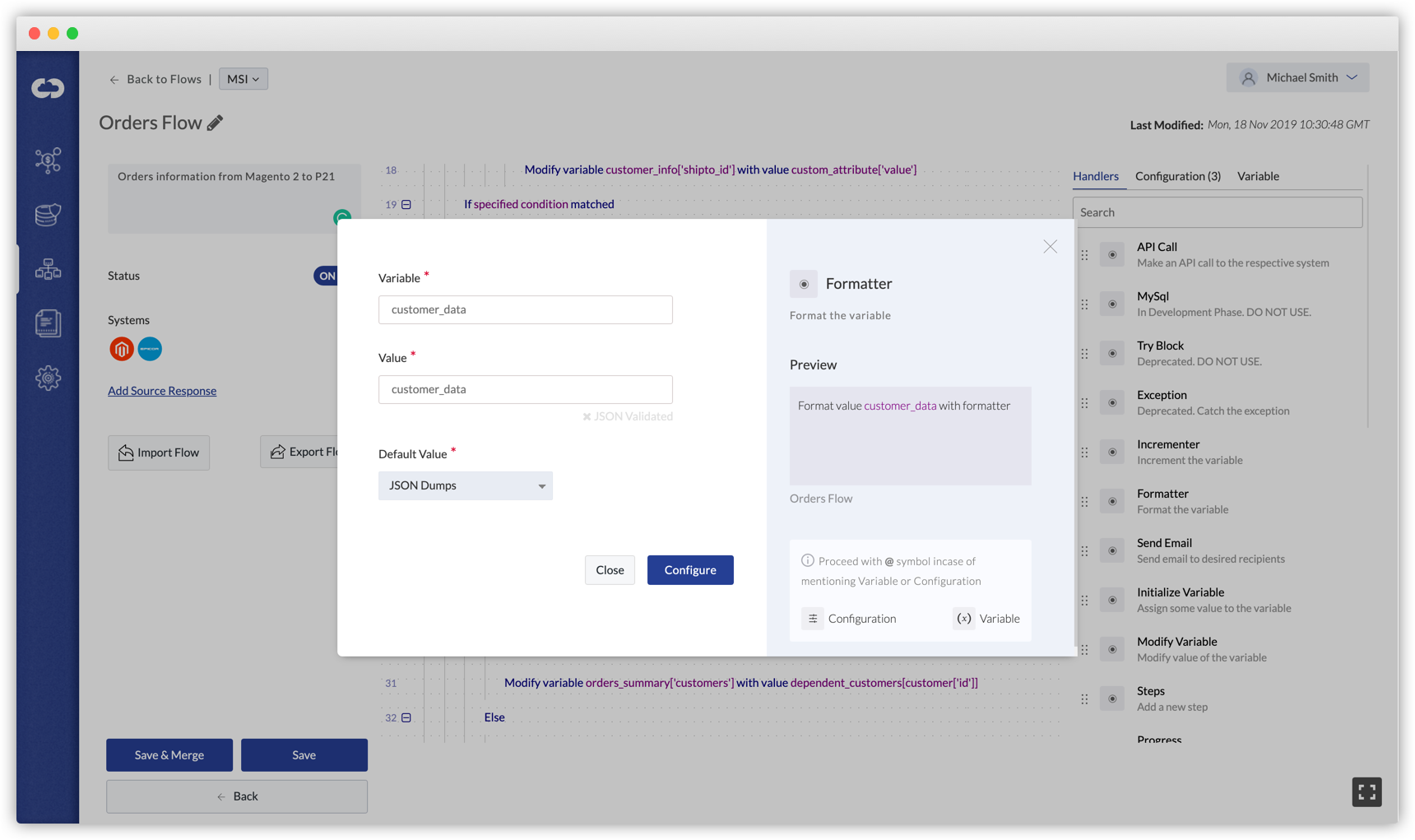

Formatter

The formatter is used to stringify/dump the JSON.

Parameters	Definition	Type
Value	Data to be formatted. Example: orders_summary, ["test", "array", "data"], {'data': orders_summary}	Variable (Defined), Array, Dictionary
Variable	Stores formatted value	Variable
Delimiter	One or more characters for specifying boundary between separate entities
Line ending
Default Value	Available Options JSON Dumps – the output might include white-spaces. JSON Dumps with separators – Eliminate white-space. To get the most compact JSON representation.

Try Block

The Try Block is used to catch an error.

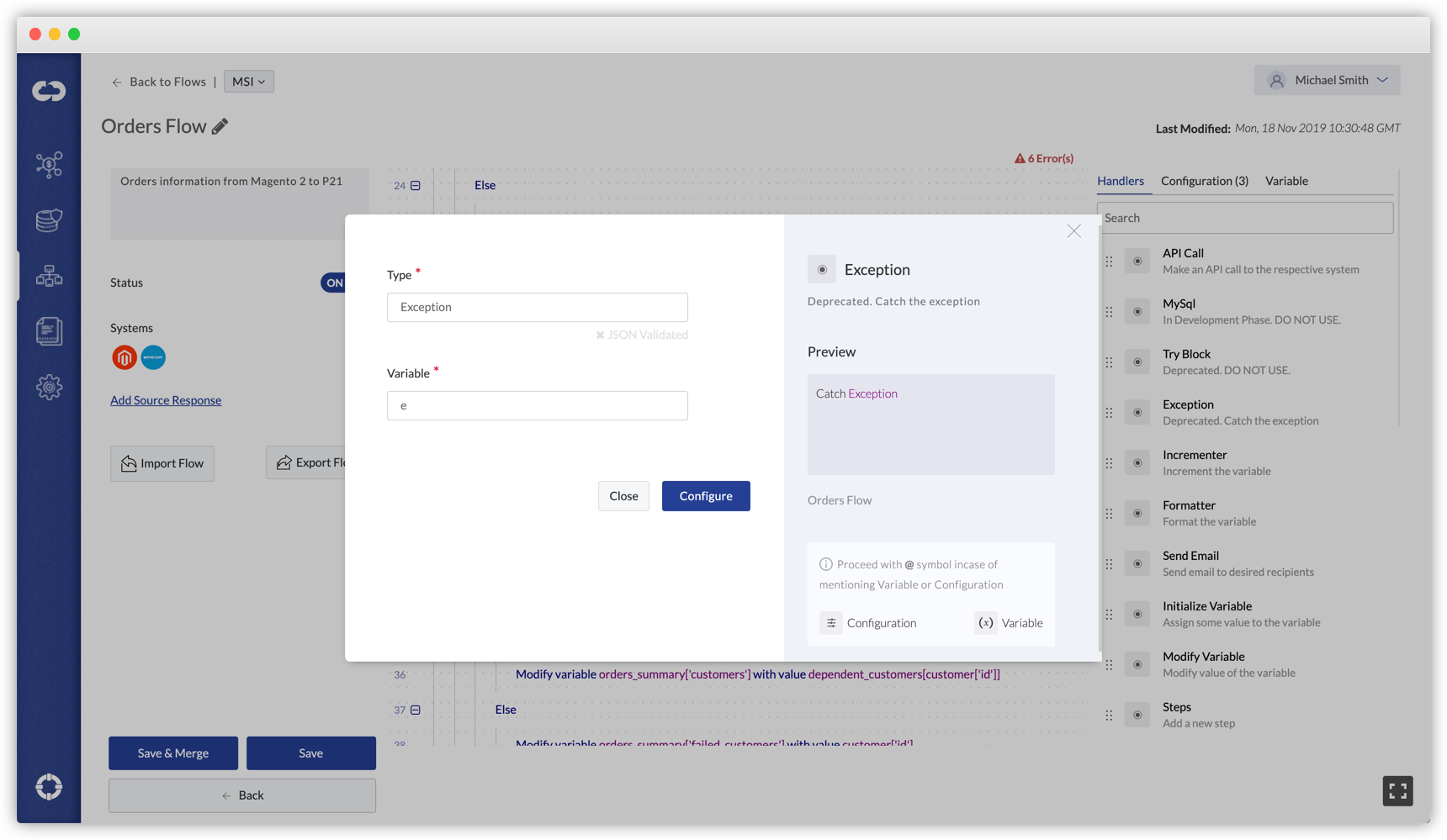

Exception Block

The Exception block handles the exceptions caught by the Try Block

Parameters	Definition	Type
Catch	Types of Exception Example: Exception, ValueError	String
Variable	Stores exception data	Variable

Email Sender

Sends an email from the Flow to the assigned recipient list.

Parameters	Definition	Type
Send To	Recipient emails in comma-separated values	String
Subject	Subject Line of the email	String
Character Set	Choose one option from the drop-down for the character set type to be interpreted in the emails	Choose from drop-down: US-ASCII ISO-8859-1 UTF-8
Content Transfer Encoding	Mail encoding method	Choose from drop-down: Quoted Printable Base64 7Bit 8Bit Binary
Message Type	Plain Text for sending string messages HTML for sending mail as per a template	Choose from drop-down: Plain Text HTML
Dynamic Data	For Plain text, leave it blank For HTML Message Type: a) if there is dynamic data, pass it as a dictionary here b) else leave it blank	Dictionary
Message	If string, give the string input If non-string, provide the HTML template.	String/ Non-string

Example 1

Message Type: Plain Text
Dynamic Data: Leave it blank
Message: String
Dear Sir,
This is to inform you that we received your ticket.

Example 2

Message Type: HTML
Dynamic Data: Leave it blank
Message: Non-String
<html>
   <head>
      <h1> Line1 </h1>
   </head>
   <body>
      <i>This is a mail to communicate that we are working on your ticket </i>
   </body>
</html>

Example 3

Message Type: HTML
Dynamic Data:
{"keys": ["Name","Age","Company"],
"records":
[
{"name": "Alex", "age": 25, "company": "DCKAP"},
{"name": "David", "age": 28, "company": "DCKAP"}
]
}
Message: Non-String
<!DOCTYPE html>
<html>
   <head>
      <style>
         table, th, td { border: 1px solid black; }
      </style>
   </head>
   <body>
      <table>
         <tr>


            <td>{{key}}</td>


         </tr>
         <tr>




                              <td>{{value}}</td>


                      <tr></tr>


         </tr>
      </table>
   </body>
</html>

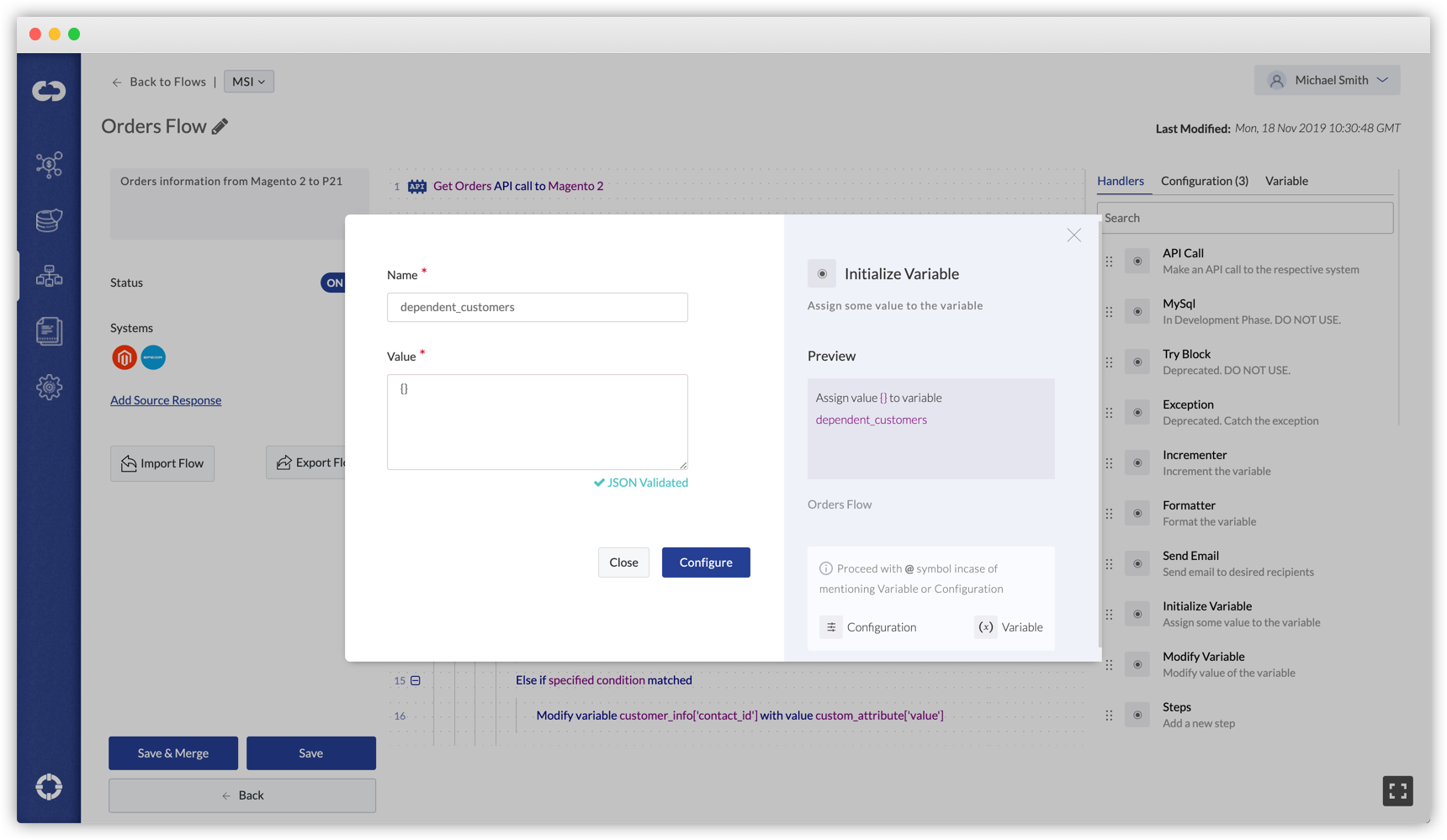

Initialize Variable

Assigns and stores data in the specified variable which can be used in the Flow, after the variable declaration.

Available Options

Parameters	Definition	Type
Value	String/Non-String	DropDown
	Value or data assigned to a variable Examples: String:Hello World Non String: Number ⇒ 0 Array ⇒ [1, 2, 3, 4, 5] Dictionary ⇒ { "customer_id": 123}	Mixed
Name	Variable that stores the assigned value.	Variable

Example 1

Assign value 0 to variable Area_Code

Here, 0 is assigned to the variable: Area_Code

Example 2

Assign value orders_info[‘data’][‘customers’] to variable customers

Here, the value in the dictionary: orders_info[‘data’][‘customers’] is assigned to a variable: customers

Example 3

Assign value {"entity_id": customer['id'], "shipto_id": ""} to variable customer_info

Here, the dictionary {"entity_id": customer['id'], "shipto_id": ""} is assigned to variable customer_info

Example 4

Assign value dependent_customers
]['customer_id'] to
variable mapped_orders['hdr']['customerId']

Here, the value in dictionary dependant_customers

][customer_id] is assigned to variable mapped_orders['hdr']['customerId']

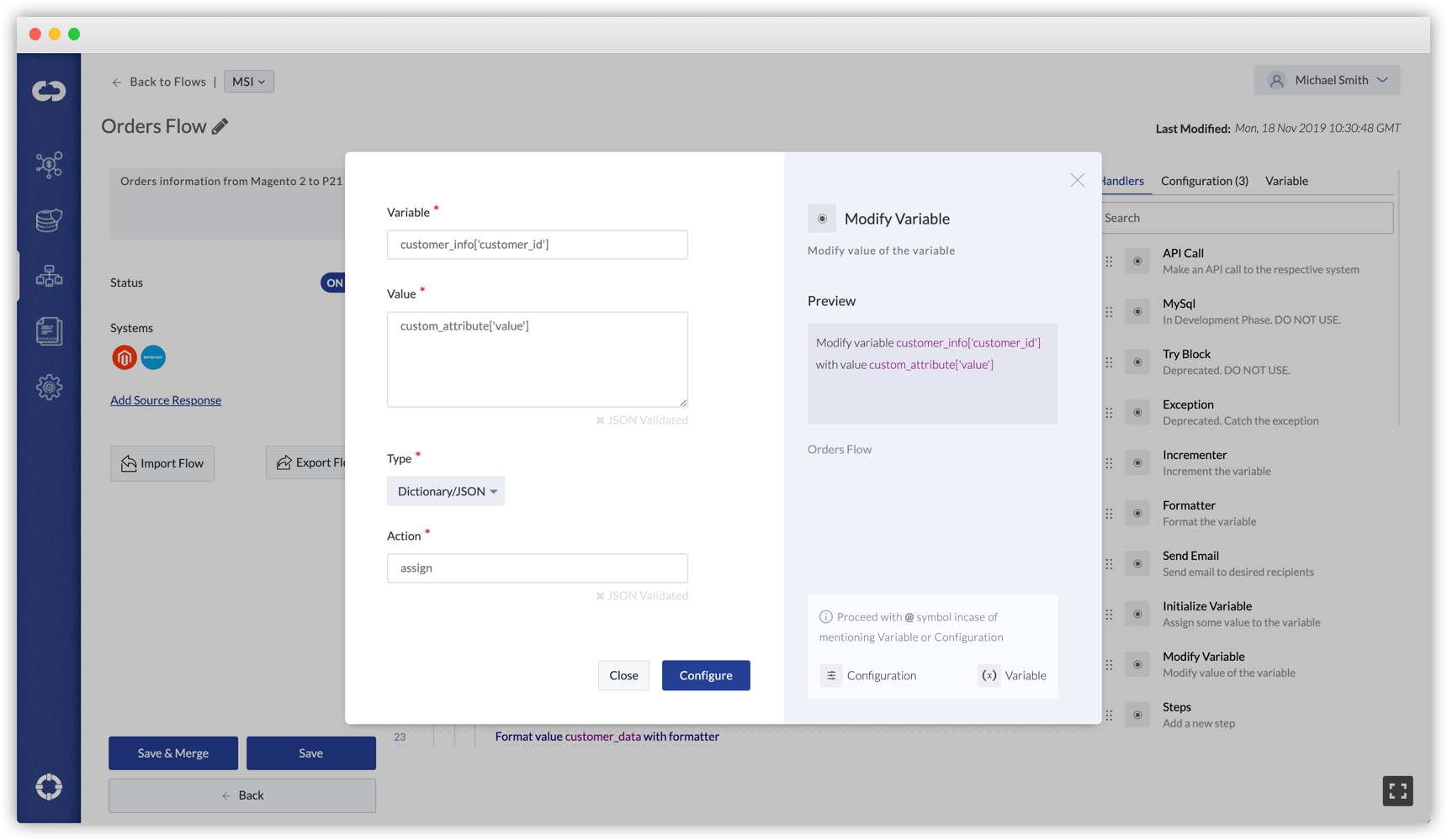

Modify Variable

The handler is used to change or modify the contents of a variable (mainly array and dictionary), that has already been used in the flow.

Available Options

Parameters	Definition	Type
Variable	Variable to be changed or updated. This variable should be already used in the flow and is to be modified	Variable (defined)
Value	String/Non-String	DropDown
	The data to replace or change in the variable	JSON, Array
Type	Type of data to be modified Dictionary/JSON Array	DropDown
Action	Action to modify existing data Append ⇒ Push a value into the array as the last element Update ⇒ Push a value into the dictionary as last element Assign ⇒ To assign new {key: value} pair into the dictionary or to modify the existing value of a key in a dictionary Pop: Array – Removes the last element Dictionary – Removes the value of the given key Remove Array – Removes the given value Deep Copy Array and Dictionary – Makes a copy of the variable and assigns a new value To learn more, find the use cases below	String

Use Case 1 – Dictionary(Action: Assign)

Modify variable customer_info['customer_id'] with value custom_attribute['value']

• Assume the variable customer_info is a dictionary/JSON and contains the value {“entity_id”:12, “name”: “Alice Blue”}
• To add more keys with values to the dictionary, the modifier handler is used
• The below step adds customer_id to the dictionary
• After processing, the customer_info variable contains the value {“entity_id”:12, “name”: “Alice Blue”, “customer_id”: custom_attribute[‘value’]}

Use Case 2 – Array(Action: Append)

Modify variable customer_info['customer_id'] with value custom_attribute['value']

• Assume the variable customer_info is an array/list and contains the value [{“entity_id: 1}, {“entity_id: 2}, {“entity_id: 3}]
• To add an item to the array, the Modify Variable handler is used
• The below step adds customer_id to the Array
• After processing, the customer_info variable contains the value [{“entity_id: 1}, {“entity_id: 2}, {“entity_id: 3}, {"custom_attribute['value']}]

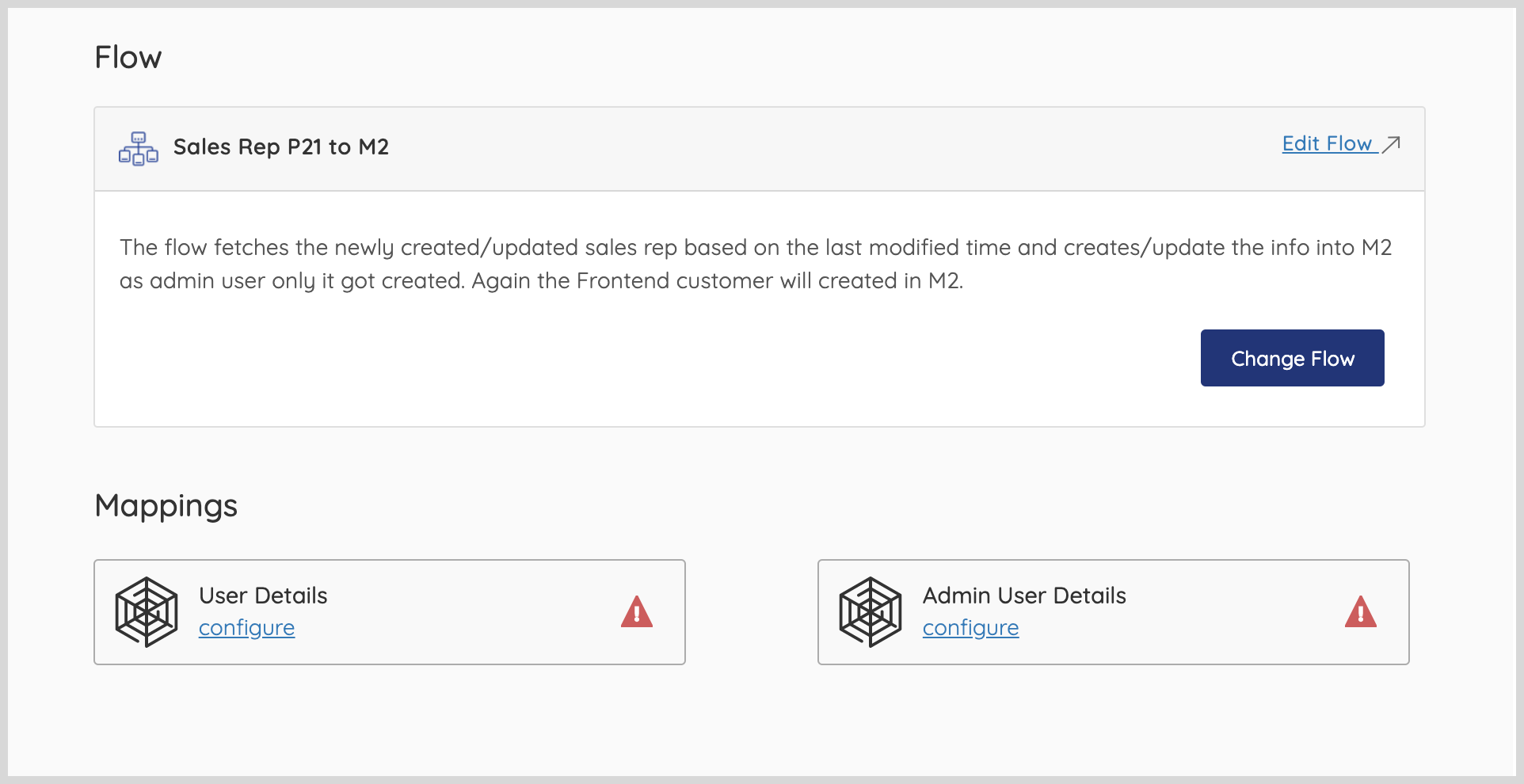

Mapping

Provides the ability to get mappings from the user and format data between two different system APIs.

Based on the Mapping configuration, the destination payload will be prepared from the source data.

Available Options

Parameters	Definition	Type
Display name	Mapping name displayed in the pipe	Alphanumeric
Source	API used to request data from the Source system	DropDown
Destination	API used to send data to the Destination system	DropDown
Variable	Stores mapped data	Variable
Source Data	Source data that will be formatted and sent to destination API as per the mapping configuration	JSON, Array
Ignore Keys	Keys that should be ignored by the system, while processing data in the mapping structure defined by the user.	Alphanumeric

Example

Prepare mapping with name Customers Information from source Get Customers- Magento 2
to destination Create Customers - Epicor P21 Custom Server

Creates a mapping node in the pipe to provide the mapping of data between the specified source and destination APIs.

Use Case – Ignore Keys

{
  "customer": [
    {
      "name":"alice",
      "address": {
        "street": "Jarvis St.",
        "door_number": "5A"
      }
    },
    {
      "name":"bob",
      "address": {
        "street": "Marvel St.",
        "door_number": "7D"
      }
    }
  ]
}

Assume the field street is mapped from source to destination system and the path generated for this field will be customer/address/street.

During Mapping, when the user sends this customer data(Parameter: Data) inside a loop, one entry at a time, to get the street address, the resulting path generated will be address/street.

In this case, the user should mention the parent keys to be ignored. In this case customer. If multiple keys need to be ignored, then the user should mention them as comma-separated values.

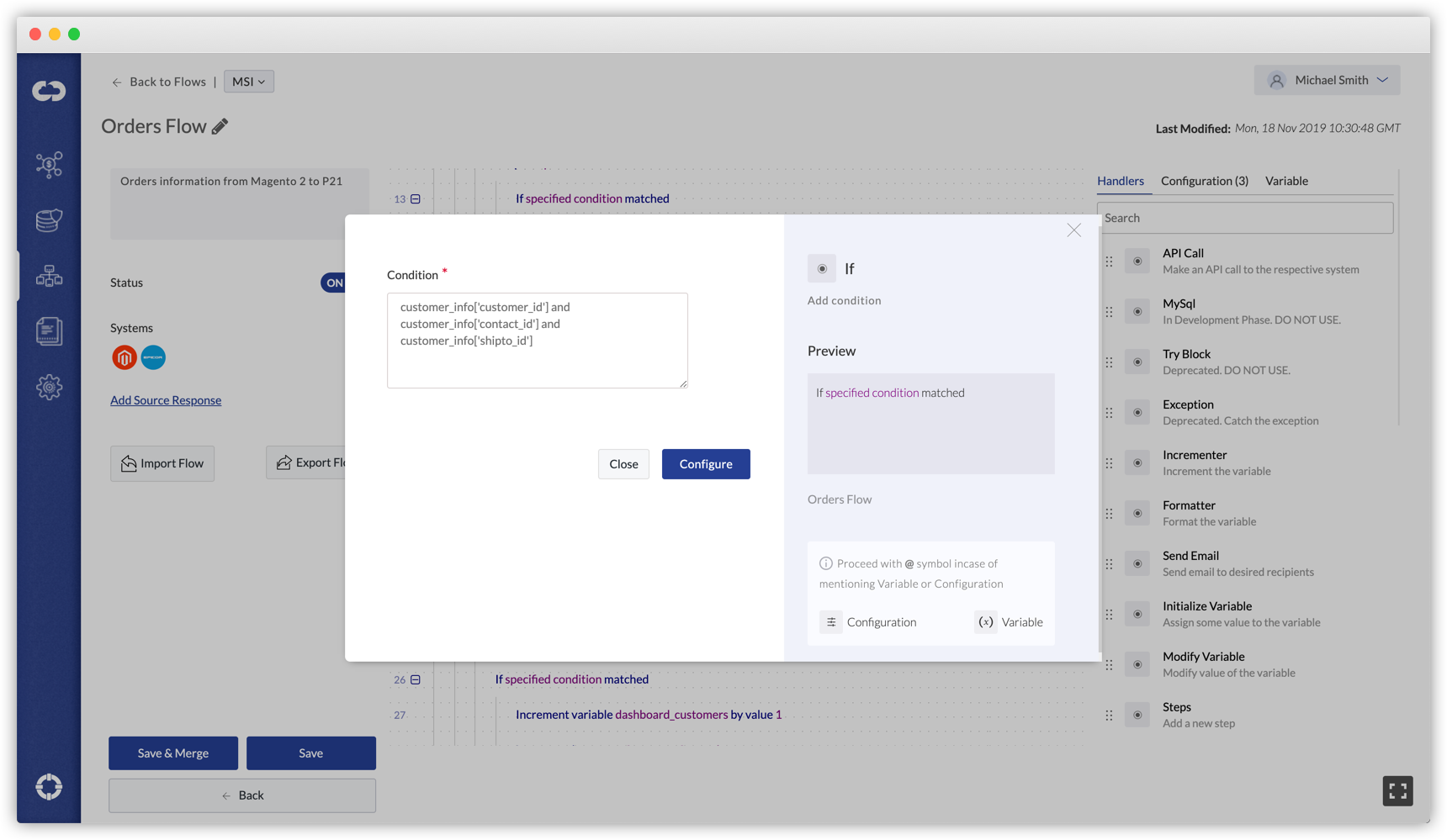

If, Else If & Else

To define and check for decision-making conditions inside the Flow.

Condition parameters are defined for the If and Else If handlers. If this condition is satisfied, the children of If will be executed. Otherwise, the children of Else will be executed.

Available Options

Parameters	Definition	Type
Condition	Condition that needs to be satisfied for the children-statements to be executed Example: admin_details['status'] If the value is true, the children will be executed	Mixed

Examples

If specified condition matched

Some example conditions that can be used with the If statement, which need to be true for the proceeding children-statements to be executed

customers['status']	If the condition returns true
customers["status"] == 200	If the condition is satisfied
orders and customers	If both order and customers variables contain values
orders or customers	If either one variable has value
'customer_id' in item	If the dictionary item has key customer_id

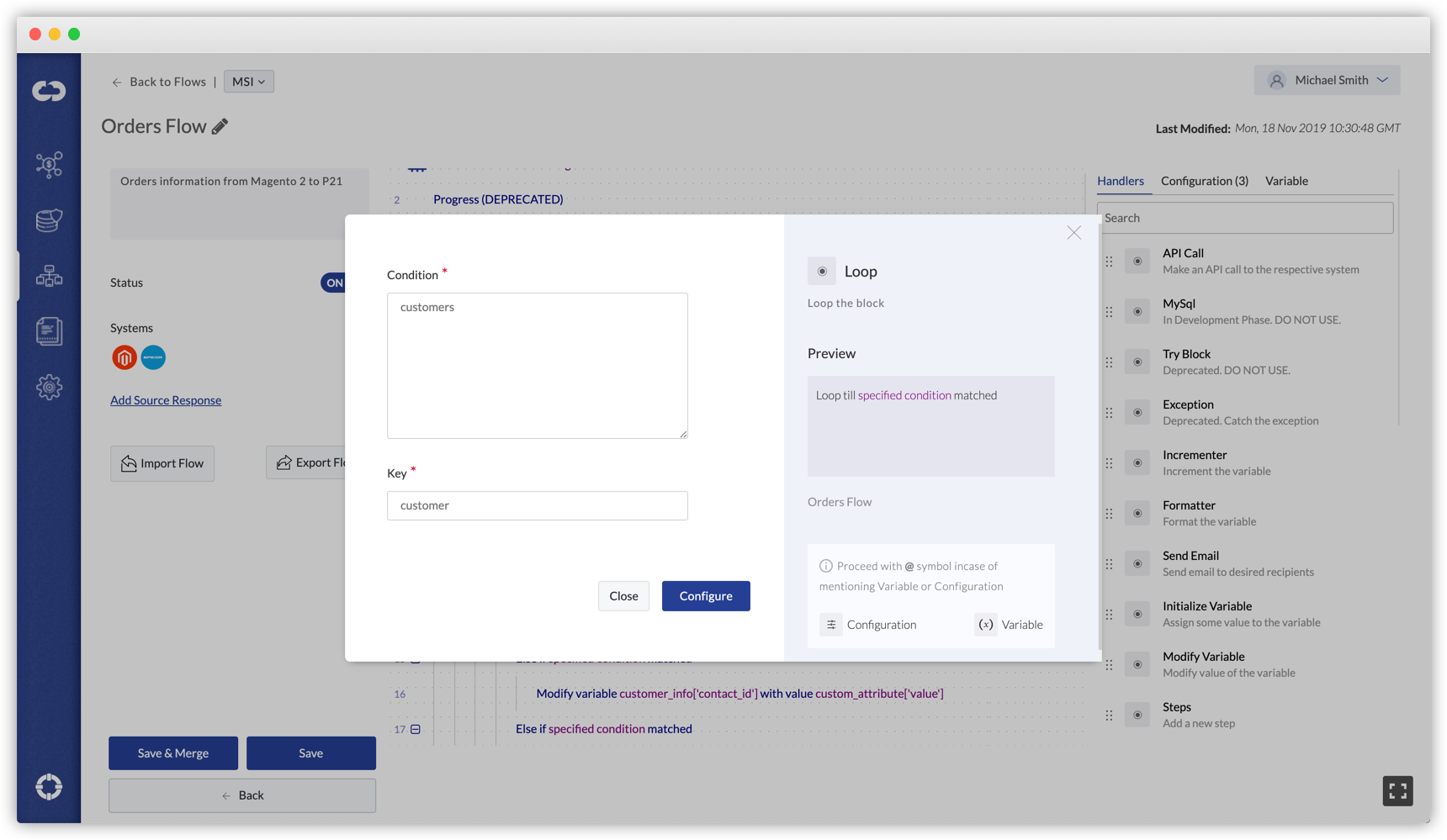

Loop (Works like a For Loop)

Executes a block of code repeatedly in a cyclic fashion, each time with a different value.

Available Options

Parameters	Definition	Type
Iterable	Data to be iterated/looped Example: Sales_rep_data['data'] The loop will keep running until there is an item in the data	Array
Key	Variable assigned to the loop counter Example: key, item	Variable

Examples

Loop till specified condition matched

• orders
• mapped_orders["lines"]

MSSQL

Connects to the Microsoft SQL database and allows users to configure data in the SQL databases.

Parameters	Definition	Type
Variable	Stores the response data (SQL response)	Variable
Systems	MSSQL System to connect to	DropDown
Database Name	Database name to connect to
Action	Operation to be performed on the data. See below for examples.	DropDown
Data	Data to be configured in the database	String/Non-string
Table Name	Table name in the database	String/Non-string
Condition	Condition to validate to configure the data	String/Non-string
Limit	Number of records needed	String/Non-string

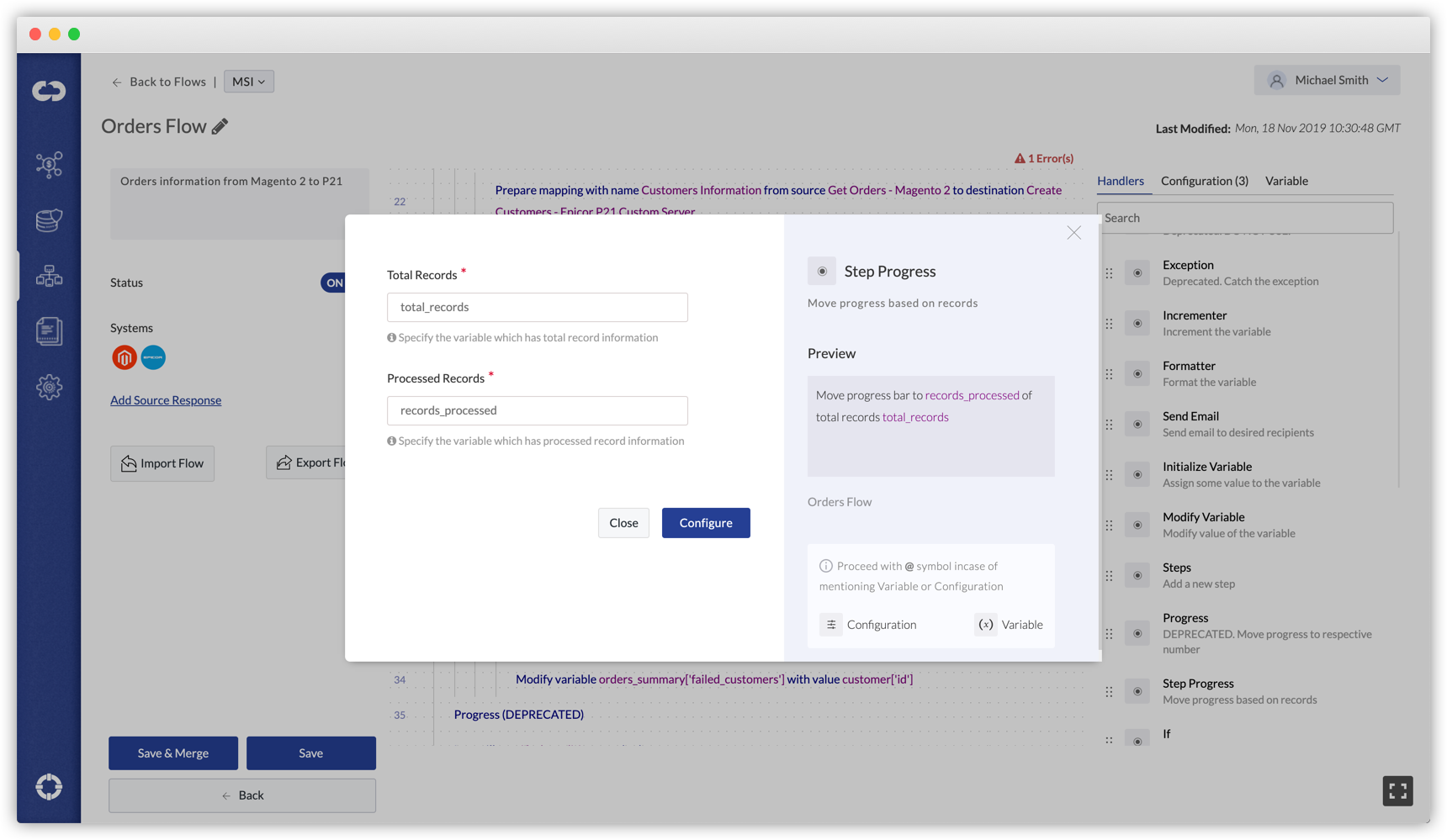

Step Progress

Denotes the progress of data processed inside a loop. The outcome of this handler is visually seen in the progress bar in the Integrations page. This helps in understanding how much data synchronization has been processed.

Available Options

Parameters	Definition	Type
Processed Records	Number of records that are processed	Variable
Total Records	Total number of records which is to be processed	Variable

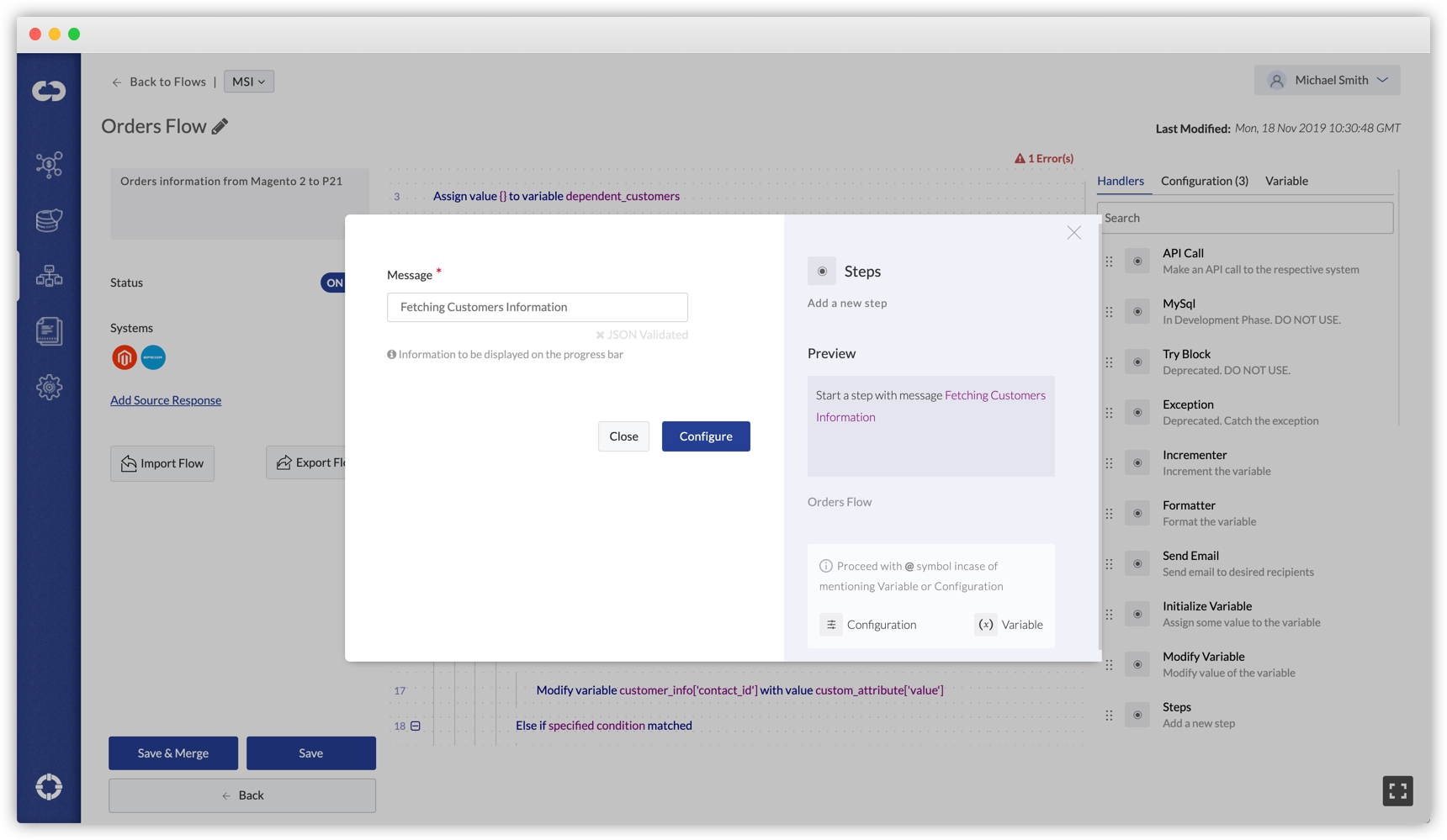

Steps

This handler is placed one level above the previous handler Step Progress. It is used to visually split the business logic of the flow, for better understanding while synchronizing the data.

Available Options

Parameters	Definition	Type
Message	Displayed in the progress bar of pipes Examples: Fetching M2 Orders Updating P21 Orders	Alphanumeric

Logger

The Logger handler is used to log any errors or warnings in the flow. The Logs menu in the project area displays all the logs from the synchronization.

This is a general level log and to log at the entity level, click here.

Available Options

Parameters	Definition	Type
General Message	Content that needs to be logged	Mixed

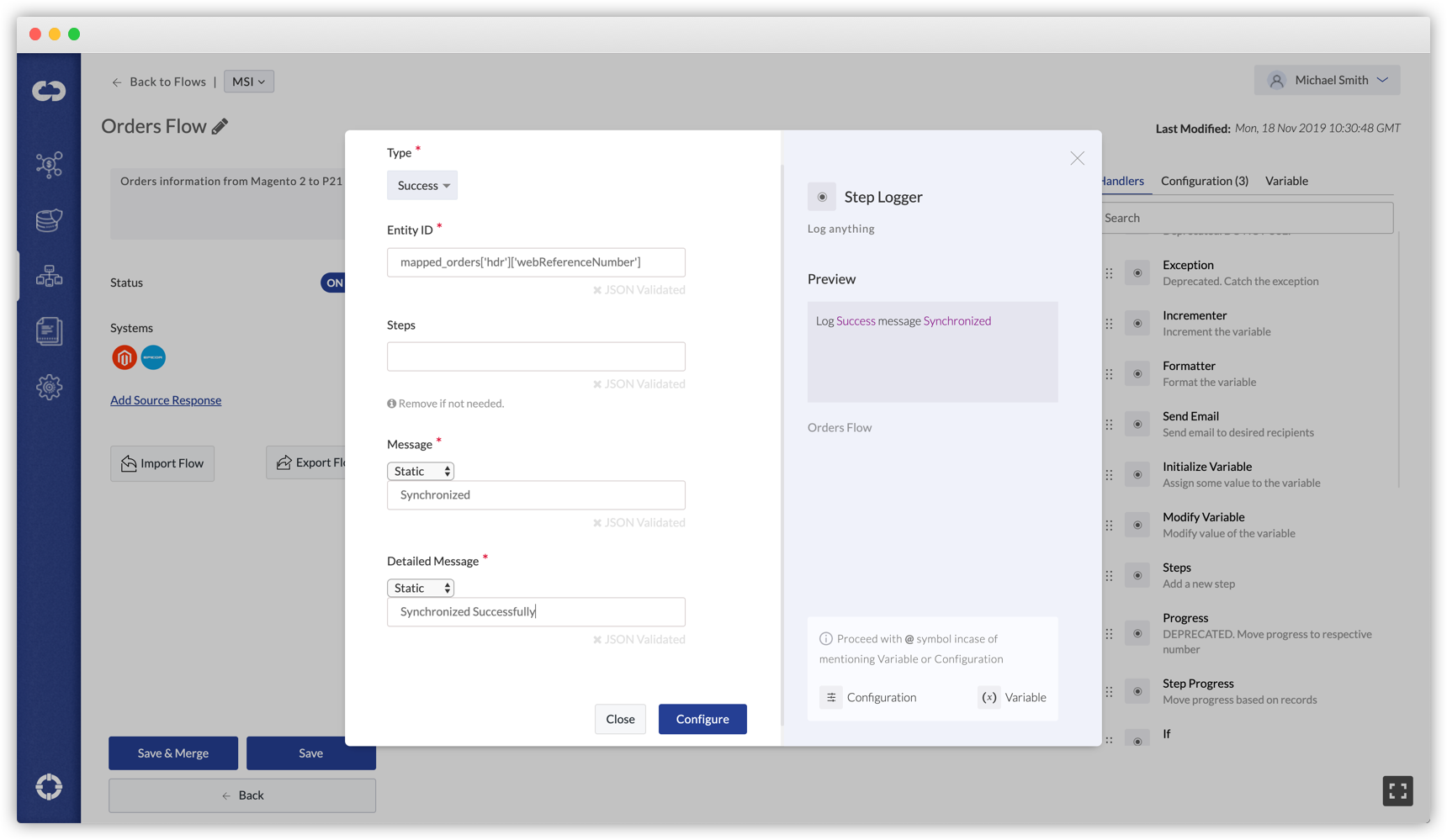

Step Logger

The Step Logger handler is similar to the Logger handler but used to provide logs at the item level. The Step Logger marks every single entity inside the loop as Success or Failure.

This can be viewed by clicking the “View” button in the Logs section.

For more general level logging, click here.

Available Options

Parameters	Definition	Type
Type	Status of the execution. Success or Failure.	DropDown
Entity ID	ID of the entry. Useful in identifying if the entities succeeded or failed. Example: item[‘itemCode’], mapped_orders['hdr']['webReferenceNumber']	Variable, Number
Message	Content that needs to be logged	Mixed
Detailed Message	Detailed content to be logged. Verbose.	Mixed

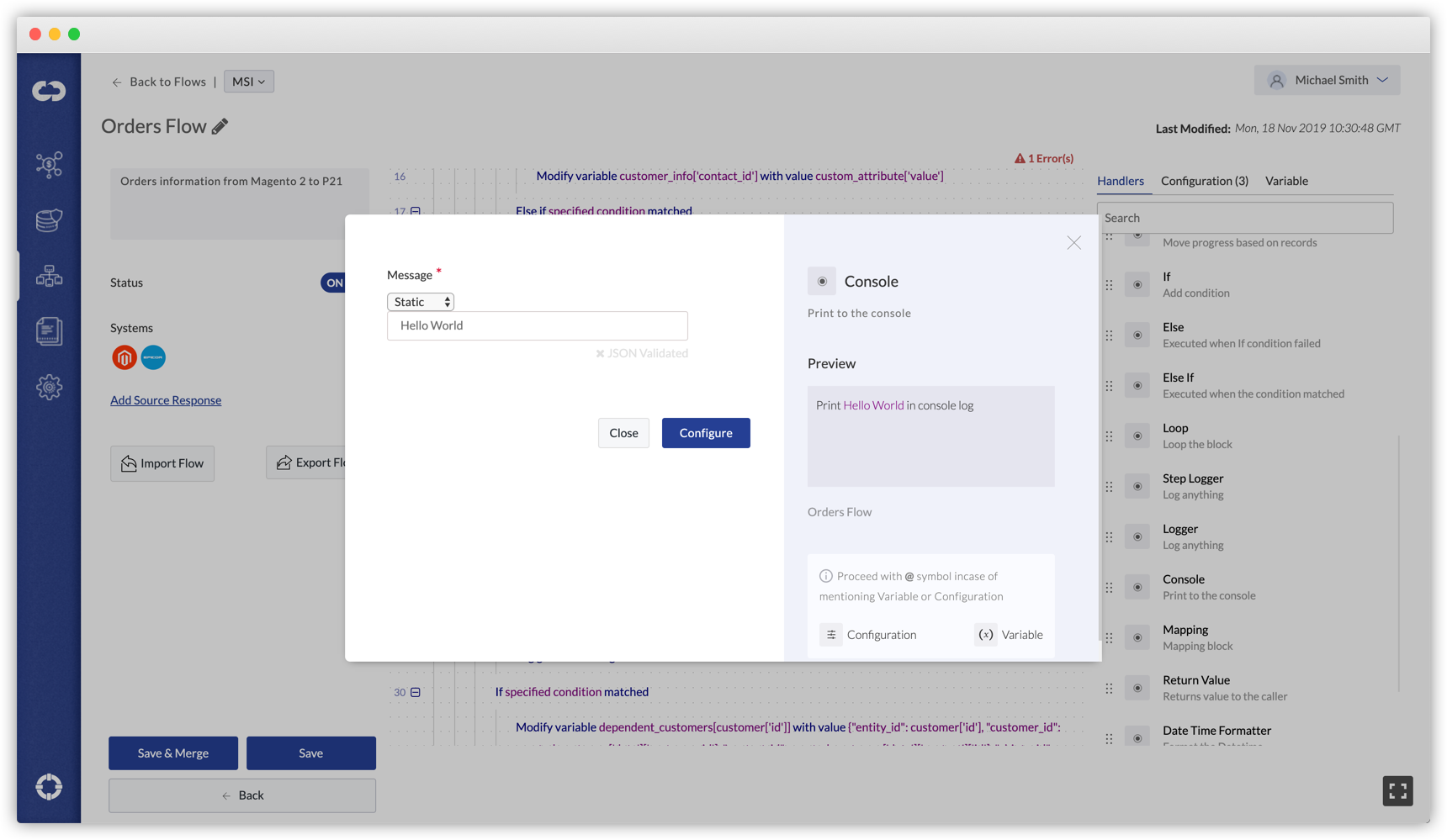

Console

Displays messages in the Logs section console area. This is especially useful in debugging the Flow itself.

The messages can be either static or dynamic.

Available Options

Parameters	Definition	Type
Message	Content that needs to be displayed Example: Dynamic ⇒ Variable: order_info, line_no Static ⇒ HelloWorld, 12345	Mixed

Get Last Synchronized Time

Gets the last synchronized time of a system, in the required time zone

Available Options

Parameters	Definition	Type
Variable	Stores the last updated time	Variable
Get Last Success Time	If Yes, fetches the last succeeded sync time. If No, fetches the last synced time irrespective of its status. Default is No.	DropDown
Systems	The output (Last sync time) is got in this System’s timezone	DropDown
Format	To change the format of the output time Example: Month-Day-Year HH:MM:SS	DropDown

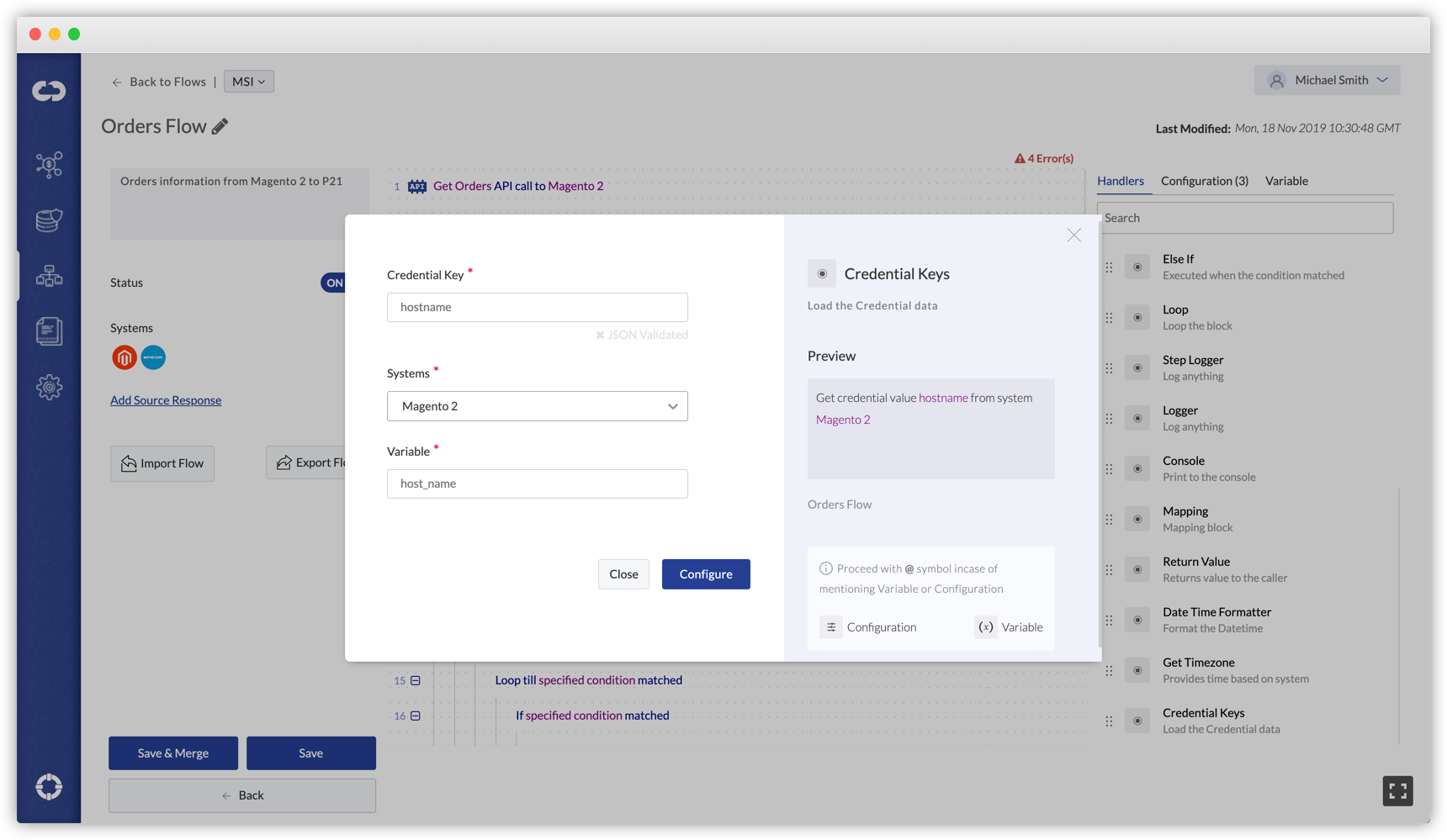

Credential Keys

Retrieves any credential details from the respective project. (Example: Name, System, Hostname)

Available Options

Parameters	Definition	Type
Value	Data that were assigned while setting up the credentials of the system Value: Name, System, Hostname	Alphanumeric
System	System from which the credential details are to be obtained	DropDown
Variable	Stores the obtained value	Variable

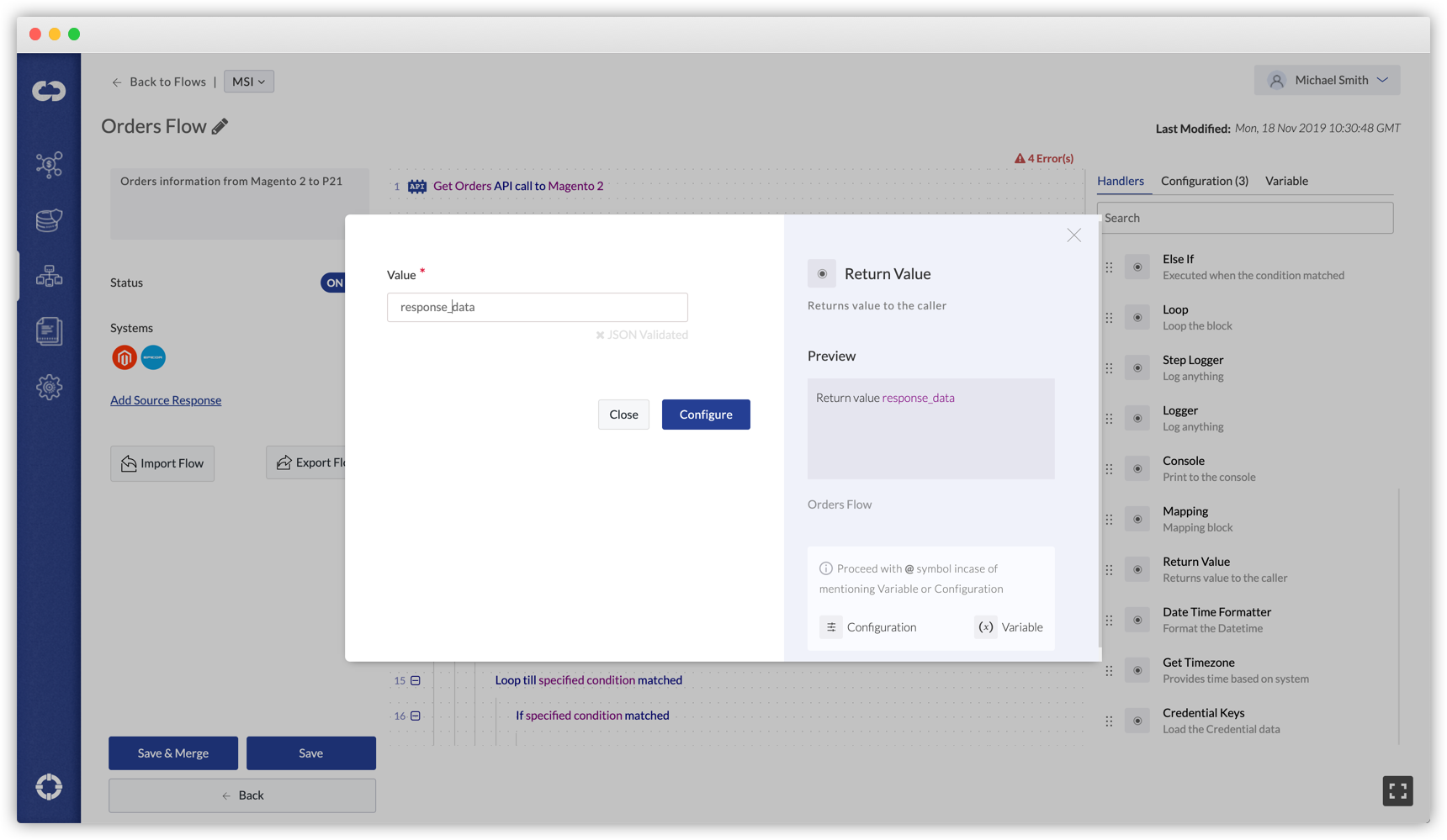

Return Value

Returns data to the caller, in real-time.

Available Options

Parameters	Definition	Type
Return Value	String/Non String	DropDown
	Payload	Variable, JSON, Array

Date Time Formatter

Add or subtract minutes or hours from a given time value.

Available options

Parameters	Definition	Type
Variable	Stores the output	Alphanumeric
Date	String/Non-string Actual date-time in UTC format or variable name containing the date-time in UTC format	DropDown
Action	Advance/Recede To add or subtract hours and minutes	DropDown
Hours and Minutes	Value of hours and minutes to be added or subtracted to the given time	Numeric

Time Converter

Converts Time from one format to the other (12Hr clock to 24Hr clock and vice versa).

Parameters	Definition	Type
Convert	The conversion time format	DropDown
Variable	Variable to store the output	Alphanumeric
Enter Hours	Hours value	Numeric (1-12 or 1-24)
Enter Minutes	Minutes value	Numeric (1-60)
Enter Seconds	Seconds value	Numeric (1-60)
Meridiem	Choose AM or PM	DropDown

\
Time Zone converter

This handler serves two purposes:

1. Converts datetime (object/string) from a time zone to another timezone.
2. Generates a timestamp for a given datetime (object/string).

Click here to Learn more about configuring the Timezone Converter and examples.

Data Type converter

Converts data from one data type to another (string to integer or integer to string).

Parameters	Definition	Type
Variable	Stores the output	Alphanumeric
Value	Value or variable whose data type has to be converted	Alphanumeric
Data type	Data type that the value has to be converted to String/ Integer	DropDown

Current DateTime

Converts current time to the timezone of selected system.

Available options

Parameters	Definition	Type
Variable	Stores the output	Alphanumeric
System	Current time is converted to this timezone	Alphanumeric

Pagination

To send required paginated data for API calls.

Available options

Parameters	Definition	Type
Variable	Output from the handler (Part of the data (from input data) as per the number of records mentioned)b	Alphanumeric
Response Data	The input to the handler i.e., the data which needs to divided into smaller arrays. Example: response data will be the output from an API call	Alphanumeric
Number of records	Number of records the user needs in the output every time	Numeric

While Loop

Loop till specified condition is true.

Available options

Parameters	Definition	Type
Condition	Loop till specified condition is true	JSON

Break

To break a loop.

SFTP Writer

To create files in a remote location using SFTP connection.

Prerequisite: Add SFTP Credentials

Parameters	Definition	Type
File	Existing remote folder location followed by file name Example: /tmp/test/file1.csv	String
Data	Name of variable containing the data to be written	Alphanumeric
Character Set	Encoding character set for the file content	Drop Down

To write CSV files, it should be in one of the below formats:

String:
Name,Branch,Year\nSanchit,COE,2\nHello,IT,1\nThere,CS,5

Array/List:
[['Name', 'Branch', 'Year', 'CGPA'],['Nikhil', 'COE', '2', '9.0'],
        ['Sanchit', 'COE', '2', '9.1'],
        ['Aditya', 'IT', '2', '9.3'],
        ['Sagar', 'SE', '1', '9.5'],
        ['Prateek', 'MCE', '3', '7.8'],
        ['Sahil', 'EP', '2', '9.1']]

SFTP Reader

To read files from a remote location using SFTP connection.

Prerequisite: Add SFTP Credentials

Parameters	Definition	Type
File	Existing remote folder location followed by file name Example: /tmp/test/file1.csv	String
Variable	Name of variable to store the data read from the remote location	Alphanumeric
Handle CSV Data	If yes, provides a list for easy looping and if no, provides raw bytes.	DropDown
Character Set	Decoding character set for the file content	Drop Down

FTP Reader

To read files from a remote location using FTP connection.

Prerequisite: Add FTP Credentials

Parameters	Definition	Type
File Path	File path where the new file to be read exists. Example: /testing/	String
File name	Name of the file to be created with extension Example: file1.txt	String
Variable	Name of variable to store the data read from the remote location	Alphanumeric
Handle CSV Data	If yes, provides a list for easy looping and if no, provides raw bytes.	DropDown
Character Set	Decoding character set for the file content	Drop Down

FTP Writer

To create files in a remote location using FTP connection.

Prerequisite: Add FTP Credentials

Parameters	Definition	Type
File Path	Existing file path where the new file is to be created Example: /testing/	String
File name	Name of the file to be created with extension Example: file1.txt	String
Data	Name of variable containing the data to be written	Alphanumeric
Character Set	Encoding character set for the file content	Drop Down

To write CSV files, it should be in one of the below formats:

String:
Name,Branch,Year\nSanchit,COE,2\nHello,IT,1\nThere,CS,5

Array/List
[['Name', 'Branch', 'Year', 'CGPA'],['Nikhil', 'COE', '2', '9.0'],
        ['Sanchit', 'COE', '2', '9.1'],
        ['Aditya', 'IT', '2', '9.3'],
        ['Sagar', 'SE', '1', '9.5'],
        ['Prateek', 'MCE', '3', '7.8'],
        ['Sahil', 'EP', '2', '9.1']]

FTP Advanced

Lists files, deletes, renames, moves & changes permission for file and creates directory in the remote location using the established FTP connection

List files

Parameters	Definition	Type
What do you want to do?	Choose the action to be performed as list files. By default, the handler lists files.	DropDown
Path	Location from which the list of files and folders are to be listed Example: /testing/	String
Variable	Name of variable to store the list of files and folders from the remote location	Alphanumeric

Delete File

Parameters	Definition	Type
What do you want to do?	Delete File	DropDown
Path	Location from which file is to be deleted Example: /testing/	String
Variable	Name of variable to know the status of the action – whether file is deleted or not	Alphanumeric
File Name	Name of the file to be deleted Example: file1.txt	String

Rename File

Parameters	Definition	Type
What do you want to do?	Rename File	DropDown
Path	Location in which the file to be renamed exists Example: /testing/	String
Variable	Name of variable to know the status of the action – whether file is renamed or not	Alphanumeric
File Name	Name of the file to be renamed Example: old.txt	String
New File Name	New name of the file Example: new.txt	String

Move File

Parameters	Definition	Type
What do you want to do?	Move File	DropDown
Path	Location in which the file to be moved exists Example: /testing/	String
Destination Path	Location to which the file has to be moved Example: /testing/folder/	String
Variable	Name of variable to know the status of the action – whether file is moved from the source path to destination or not	Alphanumeric
File Name	Name of the file to be moved Example: file.txt	String

Change Permission

Parameters	Definition	Type
What do you want to do?	Change Permission	DropDown
Path	Location in which the file whose permission is to be changed exists Example: /testing/	String
Variable	Name of variable to know the status of the action – whether file’s permission is changed or not	Alphanumeric
File Name	Name of the file whose permission is to be changed Example: file1.txt	String
Desired Permission	The desired permission is given as a three digit number – by default, it is 644 meaning read and write for the owner, read for groups and read for the public.	String

Create Directory

Parameters	Definition	Type
What do you want to do?	Create Directory	DropDown
Path	Location in which directory has to be created Example: /testing/	String
Variable	Name of variable to know the status of the action – whether directory is created or not	Alphanumeric
Directory Name	Name of the directory to be created	String

SFTP Advanced

Lists files, deletes, renames, moves & changes permission for file and creates directory in the remote location using the established SFTP connection

List files

Parameters	Definition	Type
What do you want to do?	Choose the action to be performed as list files. By default, the handler lists files.	DropDown
Path	Location from which the list of files and folders are to be listed Example: /testing/	String
Variable	Name of variable to store the list of files and folders from the remote location	Alphanumeric

Delete File

Parameters	Definition	Type
What do you want to do?	Delete File	DropDown
Path	Location from which file is to be deleted Example: /testing/	String
Variable	Name of variable to know the status of the action – whether file is deleted or not	Alphanumeric
File Name	Name of the file to be deleted Example: file1.txt	String

Rename File

Parameters	Definition	Type
What do you want to do?	Rename File	DropDown
Path	Location in which the file to be renamed exists Example: /testing/	String
Variable	Name of variable to know the status of the action – whether file is renamed or not	Alphanumeric
File Name	Name of the file to be renamed Example: old.txt	String
New File Name	New name of the file Example: new.txt	String

Move File

Parameters	Definition	Type
What do you want to do?	Move File	DropDown
Path	Location in which the file to be moved exists Example: /testing/	String
Destination Path	Location to which the file has to be moved Example: /testing/folder/	String
Variable	Name of variable to know the status of the action – whether file is moved from the source path to destination or not	Alphanumeric
File Name	Name of the file to be moved Example: file.txt	String

Change Permission

Parameters	Definition	Type
What do you want to do?	Change Permission	DropDown
Path	Location in which the file whose permission is to be changed exists Example: /testing/	String
Variable	Name of variable to know the status of the action – whether file’s permission is changed or not	Alphanumeric
File Name	Name of the file whose permission is to be changed Example: file1.txt	String
Desired Permission	The desired permission is given as a three digit number – by default, it is 644 meaning read and write for the owner, read for groups and read for the public.	String

Create Directory

Parameters	Definition	Type
What do you want to do?	Create Directory	DropDown
Path	Location in which directory has to be created Example: /testing/	String
Variable	Name of variable to know the status of the action – whether directory is created or not	Alphanumeric
Directory Name	Name of the directory to be created	String

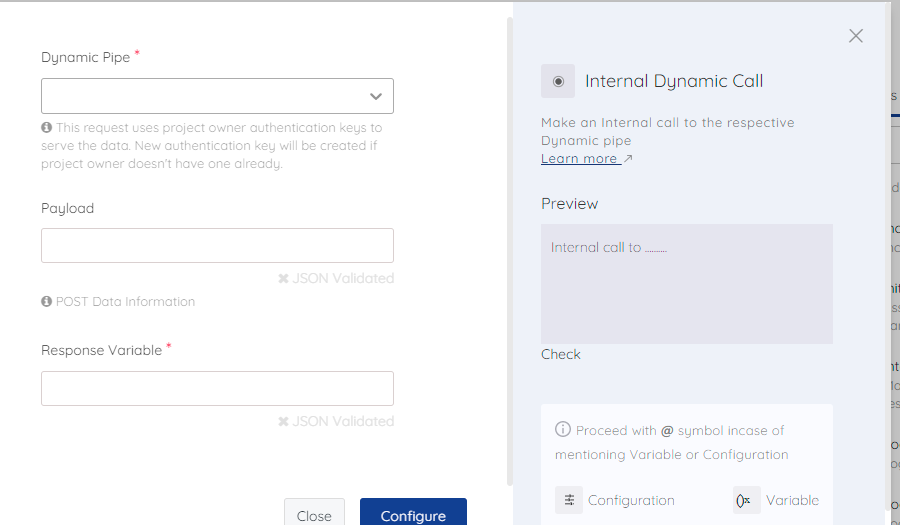

Internal Dynamic Call

To trigger a dynamic pipe from another pipe.

a) Dynamic Pipe: Choose the dynamic pipe to trigger from the dropdown list

b) Payload: The payload field is used to send data to the Dynamic Pipe that is being called. This data will be used in the Dynamic pipe to process the associated Flow.

c) Response Variable: Once the dynamic pipe is triggered from this handler, a variable will be sent back from the dynamic pipe. The ‘Response variable’ field will be used to store that response.
